Enabling an External Captive Portal with Ruckus ONE

Overview

Connecting your Fydelia splash page to your Ruckus ONE network can be done in a few simple steps:

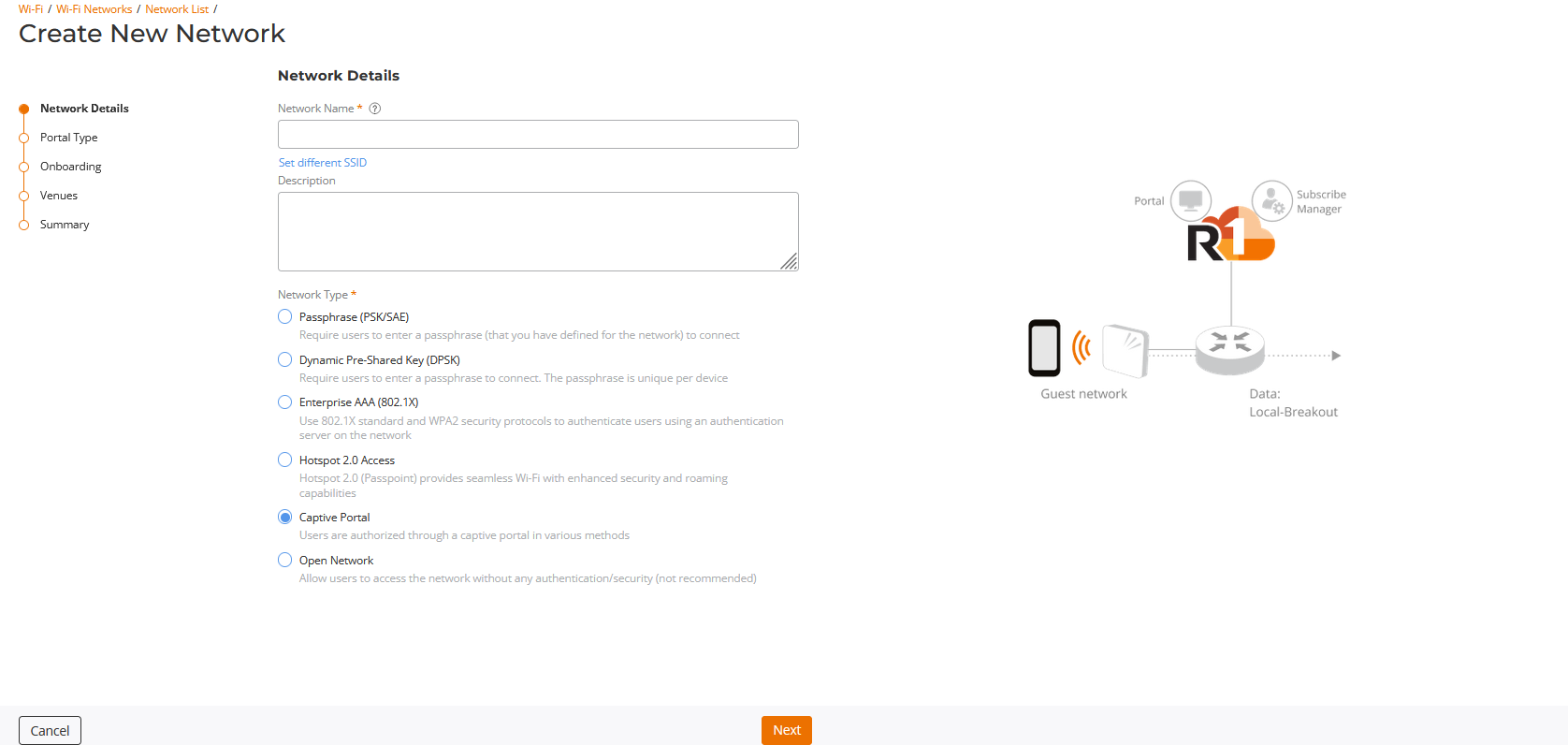

Create a new Wireless Network

Create a new network and choose "Captive Portal":

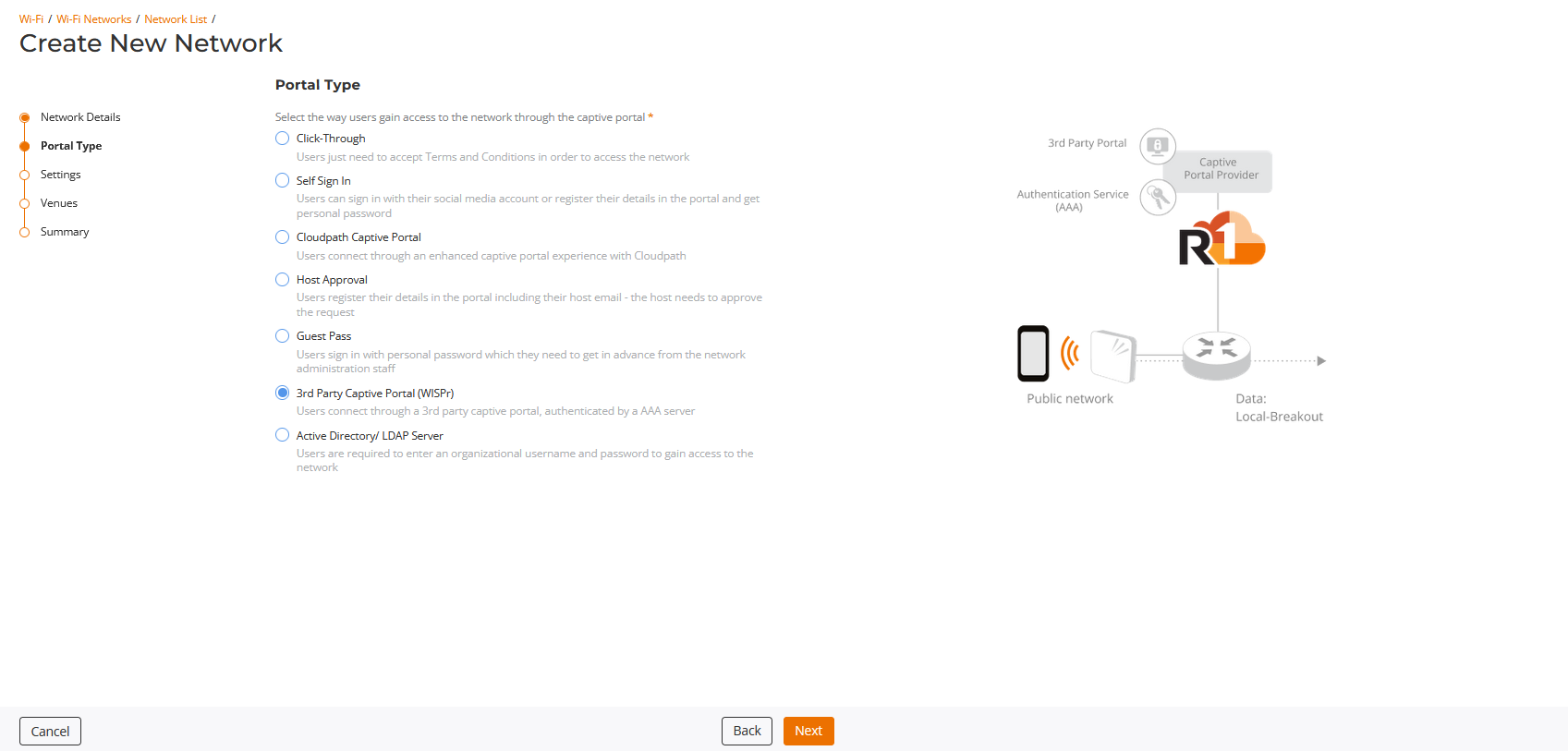

Portal Type

Under Portal Type choose "3rd Party Captive Portal"

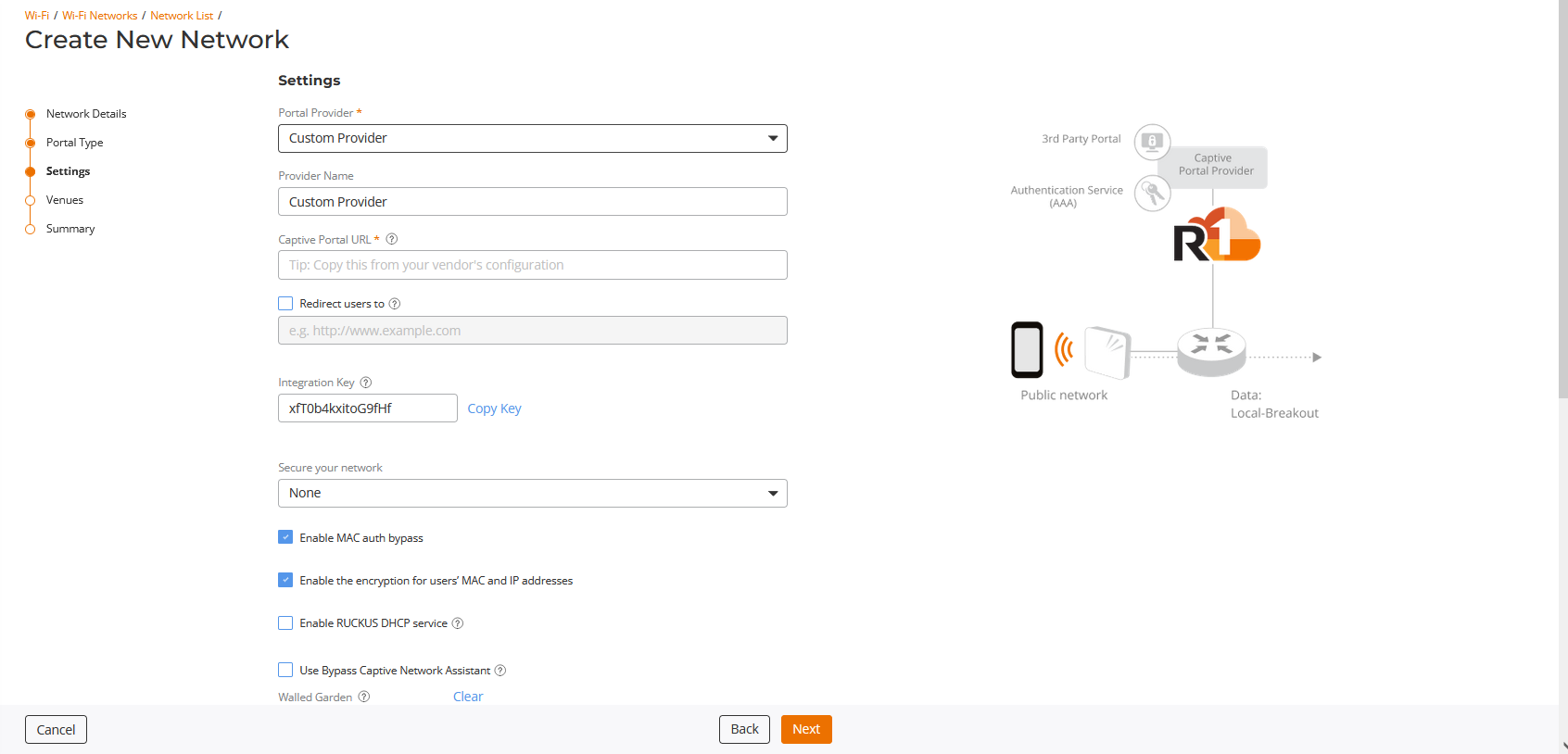

Settings

On "Settings" Choose custom provider

Enter your Splash page URL under Captive Portal URL:

Copy the integration key as you'll need that when setting up the splash page.

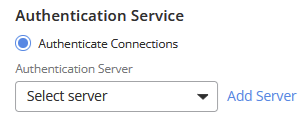

Under Authentication Service click Add Server:

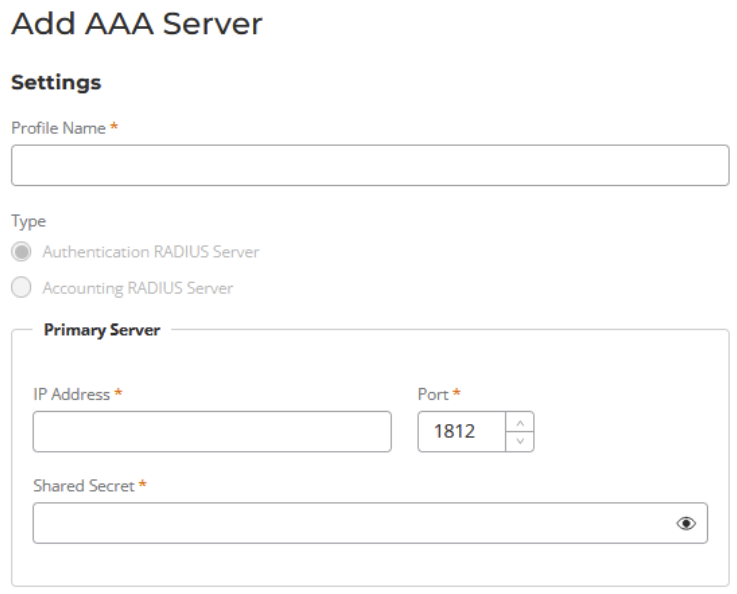

Enter a profile name:

In IP address enter the Fydelia primary RADIUS server IP: 94.130.98.11

(Obtain the shared secret via Fydelia support)

If you wish to add a secondary, the secret will be the same but use IP: 65.109.12.76

Finally, save your changes

Simple as that! Your Ruckus ONE is now configured to show your Fydelia splash page.
